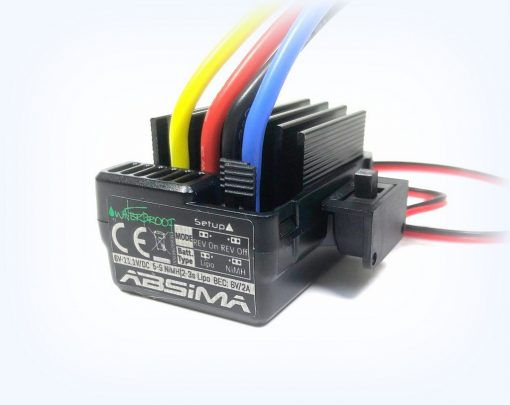

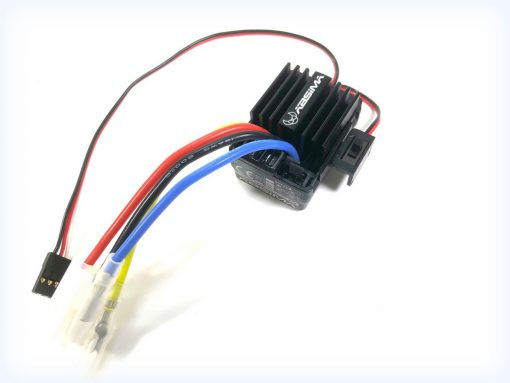

SPEED CONTROLLER 40A – 1:10 BRUSHED / WATERPROOF ABSIMA

Veldig fin og god ESC for alle typer biler fra Absima

Fra produsenten:

FEATURES:

• Water-proof and dust-proof for all weather races

• Small size with built-in capacitor module

• Multiple protections: Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection / Throttle signal loss protection

• Easily programmed with “jumpers”

SPECIFICATION:

• Application: On-road/Off-road

• Cont. / Burst Current – forward: 40A / 180A

• Cont. / Burst Current – reverse: 20A / 90A

• Input: 2-3S LiPo / 5-9 Cells NiMH

• Battery “Low-Power” Cut-off: NiMH 4.5V / 2S LiPo 6.5V / 3S LiPo 9.75V

• Motor Limit 2S LiPo/5-6 Cells NiMH: 540 or 550 Motor =12T or RPM <30.000 @ 7.2V

• Motor Limit 3S LiPo/7-9 Cells NiMH: 540 or 550 Motor =18T or RPM <20.000 @ 7.2V

• Maximum Reverse Force: 50%

• Overheat Protection: 100°

• Resistance: Fwd: 0.002 Ohm, Bwd: 0.004 Ohm

• Built-in BEC: 2A/6V (Linear Mode BEC)

• Plug System: Tamiya

• Plug & Drive System: yes

• On/Off Switch: yes

• Dimmension (L/W/H): 46.5*34.0*28*5 mm

• Weight: 70g
